Description

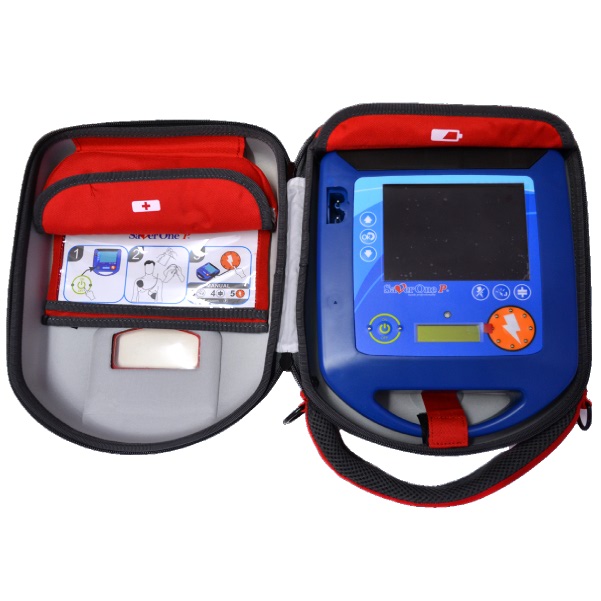

AED SAVER ONE PROFESSIONAL MACHINE

Manual Modes:

• AED Semi-Automatic Mode

 Asynchronised shock Synchronised Cardioversion
– Allows ALS Responders ultimate control over manual defibrillation. Energy settings from 50J to 200J. Charge, shock and disarm buttons.
– With the “SYNC” activated, shocks will be synchronised with the peak of the R-wave in the patients QRS complex.

AED Modes:

– AED default mode with intuitive CPR coaching for First Responders and Lay Rescuers.
– Provides step-by-step CPR instructions, ECG analysis, auto charge and shock delivery button.

Monitoring Mode:

– The AED can be switched to ECG Monitoring mode in order to assess ECG rhythm and rate.
– This can be achieved through the AED pads or via the dedicated 2 lead ECG monitoring Cable using standard ECG electrodes.

ECG Monitoring:

• Operation: Through defibrillation pads or standard ECG electrodes attached to a separate reusable 2-Lead patient ECG lead
• ECG Size: Automatic gain controlled by the display
• Heart Rate: 30-300 bpm
• Sweep Speed: 25 mm/sec
• Screen: 5.7″ TFT High Colour Display with detailed and comprehensive information, runs text and interactive graphics in tandem

Battery:

• Type: Li-Ion Accumulator (rechargeable)
• Recharging time: 2.5 hours with the charging station
• Autonomy: 200 shocks at 200J or 14 hours of ECG Monitoring for a new fully charged battery

Pads Options:

• Type: Disposable, pre-gelled and self-adhesive
• Adult: Preconnected for patients >8 years or >25Kg (81 cm² conductive surface)
• Paediatric: For patient from 1 to 8 years old or <25Kg (31 cm² conductive surface)
• Cable length: 120 cm
• Pad Shelf-Life: 30 months

Event Recording:

• Internal memory: 128 MB
• Memory capacity: 6 hours of audio, ECG and event recording
• Optional memory: Removable SD card. Length of storage depends on card capacity: a 2GB card records up to 100 hours of data
• Data recording: “AED1LOG” text file with detailed self-test activity “AEDFILES” with complete recorded events
• Event review: “Saver View Express” data management software

Physical Characteristics
Dimensions: 26,5 x 21,5 x 7,5 cm
Mass: 2.45 kg with rechargeable battery

Environmental:

• Operating Temp: 0º C to 55º C
• Storage Temp: -35º C to 60º C (without battery)
• Humidity: 0% to 95% relative humidity non-condensing
• IP Protection: EC 60529 class IP54; splash proof, dust protected
• Shock/Drop: IEC/EN 60601-1 clause 21; 1-meter drop, impact, force, rough handling, mobile tolerance
• Electrostatic: EN 61000-4-2
• Electromagnetic: EN 60601-1-2; Emission, Immunity
• Electrical Protection: EN 60601-1 class I type BF / CF
• EC Directive: Class IIb
• SA Risk Class: C
• GMDN Code: 37805

Data Sheet – AED Saver One Professional

---

AED SAVER ONE PROFESSIONAL BATTERY

– Model: Original
– Voltage: 21.60 V
– Capacitance: 2.10 A/h
– Weight: 0.420 kg

Suitable for SAVERONE DEFIBRILLATEUR SAVER ONE (rechargeable)

Data Sheet – AED saver One Professional Battery

---

AED SAVER ONE PROFESSIONAL PADS (ADULT)

– SAVER ONE Disposable Pre-Connected Adult Pads 1 Pair
– Adult Electrode Pad
– A Pair of pre-connected electrodes (external connection cable) for Saver One defibrillator
– Disposable for One-time use – Adult Version
– Self-adhesive and pre-gelled with direct cable connection
– Latex-free, smooth, flexible and square
– Fine, flexible conductor inserted between a protective polymer backing and a gel adhesive
– Resist the rigors of CPR
– Shelf Life approx. 2 years.

Data Sheet – AED Saver One Professional Pads (Adult)

---

AED SAVER ONE PROFESSIONAL PADS (PAEDIATRIC)

– SAVER ONE Disposable Pre-Connected Paediatric Pads 1 Pair
– Paediatric Electrode Pad
– A Pair of pre-connected electrodes (external connection cable) for Saver One defibrillator
– Disposable for One-time use – Child Version
– These electrodes have been specially designed for children under 8 years of age and / or weighing less than 25 kg
– Self-adhesive and pre-gelled with direct cable connection
– Latex-free, smooth, supple, oval-shaped
– Fine, flexible conductor inserted between a protective polymer backing and a gel adhesive
– Resist the rigors of CPR.
– Shelf Life approx. 2 years.

Data Sheet – AED Saver One Professional Pads (Paediatric)
